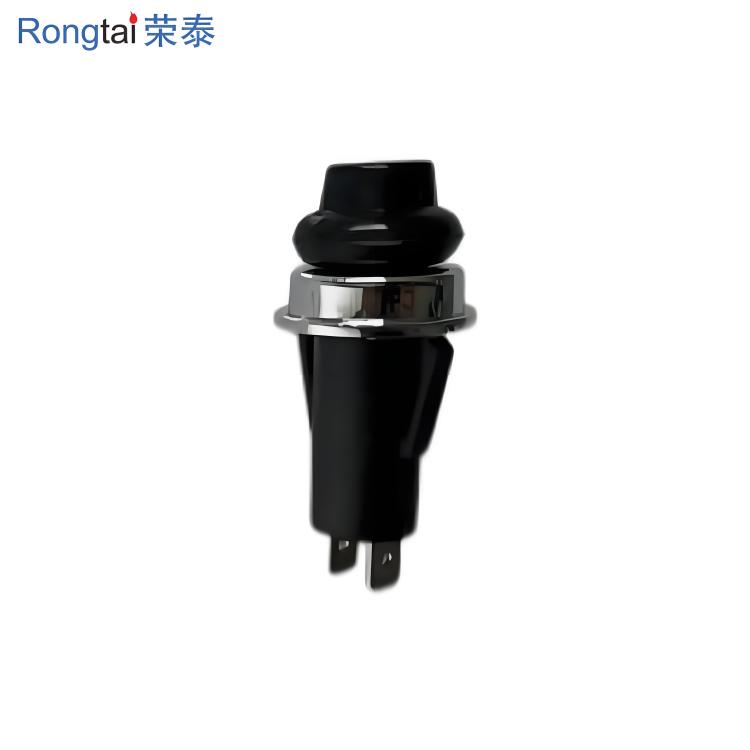

Replacing a starter ignition switch button in gas appliances, such as barbecue stoves, requires precision and adherence to safety standards. Central to this process are three critical components: the Connect Switch, Barbecue Stove Igniter Kit, and Thermocouple.



The Connect Switch serves as the interface between the ignition system and the power source. When replacing it, ensure compatibility with the appliance’s voltage requirements (typically 220-240V/50Hz) and follow proper wiring protocols. Miswiring can lead to electrical failures or safety hazards.



The Barbecue Stove Igniter Kit is the core ignition component. Modern kits, like the JZDD-307L model, feature piezo-electric ignition and long tubes for safe sparking distances (up to 6mm). When installing, verify the kit’s specifications, including voltage output (≥10kV) and material durability (ABS plastic with ISO 22702 certification). Proper alignment of the Igniter’s electrode with the burner is crucial for reliable ignition.



The Thermocouple acts as a safety sensor, shutting off gas flow if the flame extinguishes. During replacement, position the thermocouple tip within the flame’s hot zone (maximum working temperature 750°C) and ensure a secure connection via coaxial connectors. Robertshaw’s Quick Connect Thermocouple Series, for instance, uses patented designs for simplified installation and enhanced temperature sensitivity.



Safety protocols include disconnecting power/gas supplies before work, using OEM-compatible parts, and testing functionality post-installation. Adherence to standards like GB 16914-2023 ensures compliance with flame failure protection requirements. By integrating these components correctly, technicians can restore appliance functionality while mitigating risks of gas leaks or electrical faults.
