How to Install an Oven Lamp Safely?
Installing an

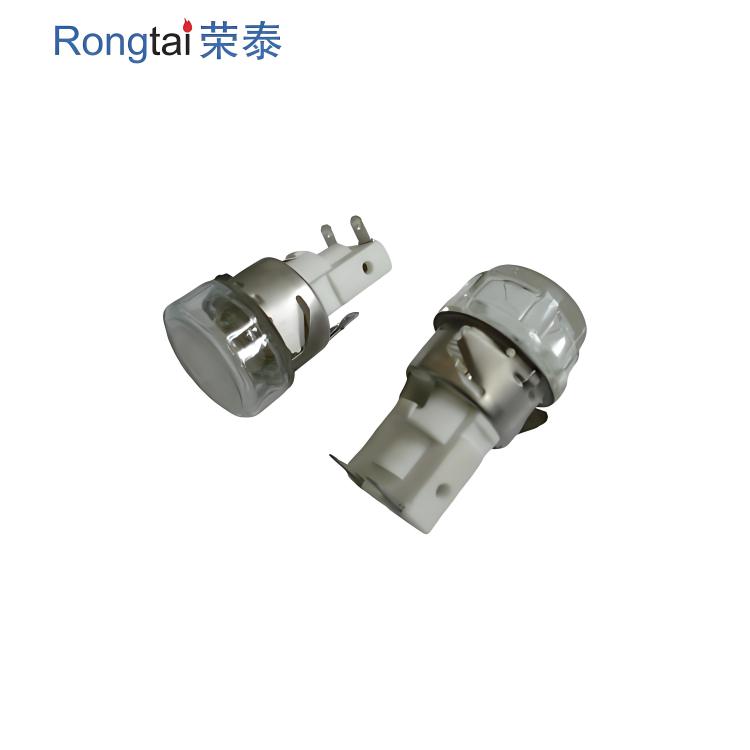

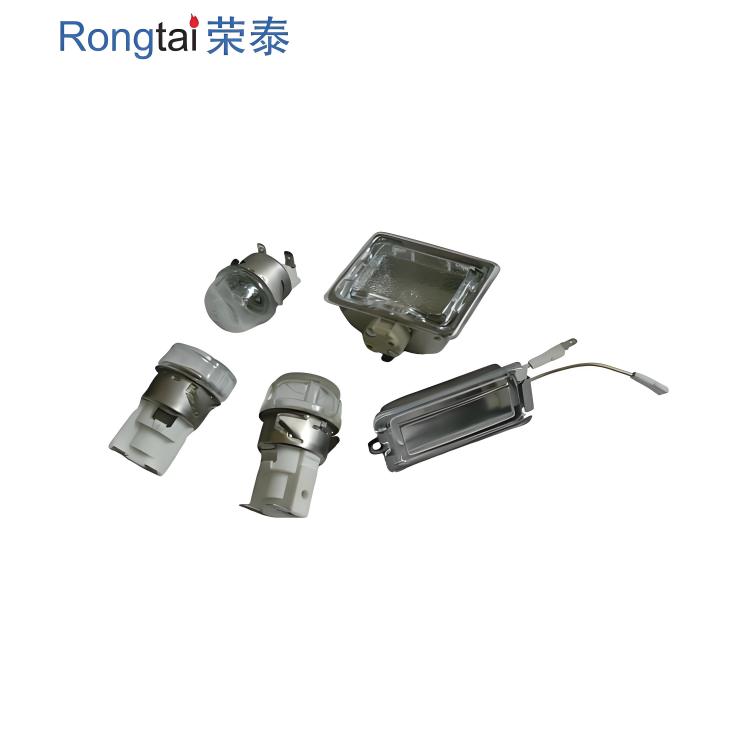

Oven Lamp requires precision and adherence to safety protocols to ensure proper functionality and prevent electrical hazards. This guide covers essential steps for integrating an oven lamp, connecting switch, and incorporating
Thermocouple systems for temperature monitoring.
1. Safety Preparations
Begin by disconnecting the oven from the power source at the circuit breaker to eliminate electrical risks. Verify the absence of voltage using a circuit tester. Wear insulated gloves and safety goggles to protect against accidental shocks or debris during installation.
2. Remove Existing Components
If replacing an old lamp, carefully detach the oven’s interior cover or access panel. Unscrew the faulty bulb and disconnect its wiring. Inspect the socket for damage or corrosion, replacing it if necessary. For ovens with integrated thermocouples, note the existing wiring configuration to ensure accurate reconnection.
3. Wiring the Oven Lamp and Switch
- Lamp Connection: Secure the new oven lamp’s wires to the socket, matching the polarity (hot wire to brass terminal, neutral to silver terminal). Use wire nuts and electrical tape to insulate connections, preventing short circuits.
- Switch Integration: Connect the switch to the lamp circuit, ensuring it interrupts the hot wire. For rotary or push-button switches, follow the manufacturer’s diagram to align terminals and fasten screws securely.
4. Thermocouple Installation
Thermocouples monitor oven temperature and enhance safety by triggering shutdowns during overheating.
- Positioning: Mount the thermocouple probe near the heating element, avoiding direct flame contact.
- Wiring: Link the thermocouple’s positive and negative leads to the control module or safety valve. Ensure cold junction compensation is applied to maintain measurement accuracy. Use high-temperature-resistant wiring to withstand oven conditions.
5. Testing and Final Checks
Reassemble the oven components and restore power. Test the lamp and switch functionality, verifying consistent illumination and smooth operation. Confirm the thermocouple’s accuracy by comparing its readings with a calibrated thermometer. Inspect all connections for stability and insulation integrity.
Key Considerations
- Thermal Protection: Ensure the lamp and thermocouple are rated for the oven’s maximum temperature to prevent melting or failure.
- Compliance: Adhere to local electrical codes and manufacturer guidelines for wiring and component compatibility.
- Maintenance: Periodically clean the lamp socket and thermocouple probe to avoid residue buildup affecting performance.
By following these steps, technicians can safely install oven lamps, integrate switches, and configure thermocouples, ensuring reliable operation and enhanced safety in commercial or residential kitchens.
